Left Rear Vent Temperature Sensor -G405-, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the left rear backrest. Refer to REAR SEAT BACKREST, REMOVING AND INSTALLING .

-- Lift the floor covering in the area of the Left Rear Vent Temperature Sensor -G405-.

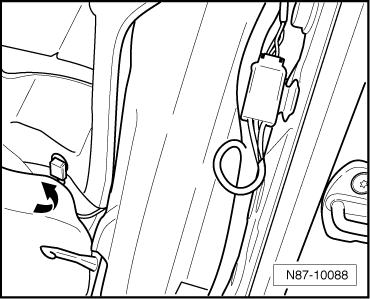

Fig 1: Twisting To Loosen Sensor

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connector from the Left Rear Vent Temperature Sensor -G405- and turn the sensor in direction of -arrow-.

-- Pull the Left Rear Vent Temperature Sensor -G405- out of the air guide channel.
