Heater Core, Removing And Installing: Installing
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
-- Install The Heater Core In The Reverse Order.
- Always replace the O-rings.
-- Secure all connections with the same type of clips used in series production. Refer to the Parts information..

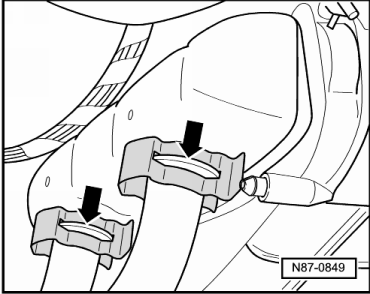

-- After installing the retaining clips, make sure they are securely seated -arrows- on the heater core.
