Fresh Air Blower -V2-, Removing And Installing: Removing
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Risk of damaging the fresh air blower if operated incorrectly.
Imbalance and problems during operation is possible.
- Avoid using force on the fan wheel.
- Never move the balancing weight on the fan wheel.
-- Remove the footwell trim panel on the front passenger side. Refer to STORAGE COMPARTMENTS, COVERS AND TRIM .
-- Remove the footwell vent on the front passenger side. Refer to FRONT PASSENGER SIDE FOOTWELL VENT, REMOVING AND INSTALLING .

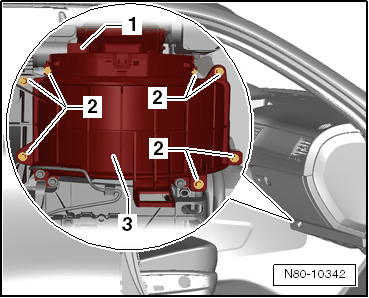

-- Remove screws -2-.
-- Disconnect the connector -1- from the Fresh Air Blower -V2- -3-.
-- Remove the Fresh Air Blower -V2- -3- downward.
