Evaporator Temperature Sensor -G308-, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the lower instrument panel trim panel. .

-- Turn the sensor -1- approximately 90° in direction of -arrow-.

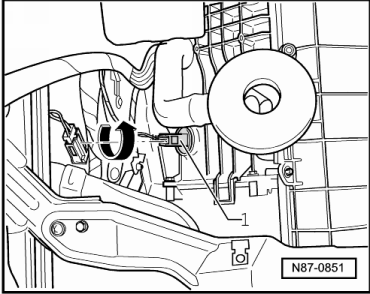

Fig 1: Turning Temperature Sensor Connector
GWWN87-0851Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connector from the sensor.

-- Remove the sensor from the housing.
