Evaporator Housing, Disassembling And Assembling: Notes

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools And Workshop Equipment Required

Torque Wrench 1331 5-50 Nm :VAG1331
Hose Clamps - Up To 25mm:3094
Shop Crane - Drip Tray:VAS6208
Engine Bung Set:VAS6122
A/C Service Station
Commercially available compressed-air gun

NOTE:

Extract the refrigerant using the A/C Service Station.

The previously used service stations can still be used see equipment information..

To prevent the ingress of dampness all components of the refrigerant circuit which have been opened must be sealed with suitable plugs.

Environmentally hazardous draining of refrigerant is an offense punishable by law.

-- Observe safety precautions when working on the high voltage system. Refer to HIGH VOLTAGE SYSTEM SAFETY PRECAUTIONS .

-- Pay attention to safety precautions for working near high voltage components. Refer to SAFETY PRECAUTIONS NEAR HIGH VOLTAGE COMPONENTS .

-- Note the high voltage system danger classification. Refer to HIGH VOLTAGE SYSTEM GENERAL WARNINGS .

-- See notes. Refer to WORKING ON REFRIGERANT CIRCUIT .

CAUTION:

Danger or frostbite due to refrigerant coming out under pressure.

Frostbite on the skin and other parts of the body is possible.

- Wear safety gloves.

- Wear protective eyewear.

- Extract refrigerant and open the refrigerant circuit immediately.

- If more than 10 minutes elapse after extracting the refrigerant and the refrigerant circuit was not opened, extract the refrigerant again. Pressure can develop in the refrigerant circuit due to evaporation.

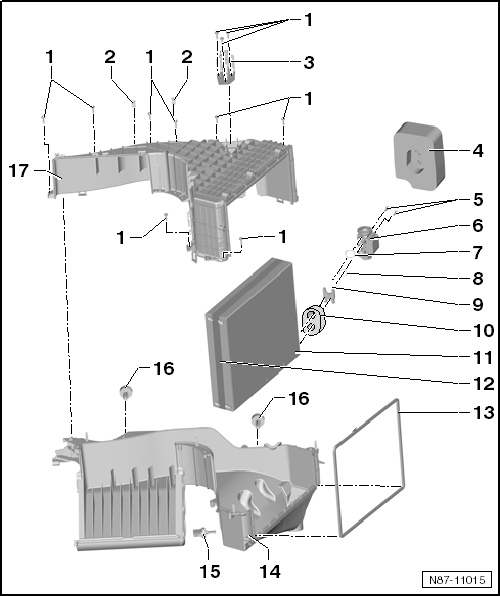

Fig 1: Exploded View Of Evaporator Housing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Bolt
- 1.5 Nm
- 4 x 16 mm
Clamp
Bracket
Seal
- Pay attention that the seal is seated correctly.
Cylindrical Screw
- 10 ± 1 Nm
- Quantity: 2
- M5x40x16
Expansion Valve
- Removing and installing. Refer to EXPANSION VALVE, REMOVING AND INSTALLING .
Sealing Ring
- Allocation. Refer to the Parts information..
Sealing Ring
- Allocation. Refer to the Parts information..
Expansion Valve Bracket
Seal
- Pay attention that the seal is seated correctly.
Evaporator
- Removing and installing. Refer to EVAPORATOR, REMOVING AND INSTALLING .
Seal
- Pay attention that the seal is seated correctly.
Seal
- Pay attention that the seal is seated correctly.
Evaporator Housing Lower Section
Evaporator Temperature Sensor -G308-
- Removing and installing. Refer to EVAPORATOR TEMPERATURE SENSOR -G308-, REMOVING AND INSTALLING .
Rubber Bushing
Evaporator Housing Upper Section
