Condensation Water Drain, Checking

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the footwell trim panel on the front passenger side. Refer to STORAGE COMPARTMENTS, COVERS AND TRIM .

Condensation water drain hose -1- must be able to be connected to the connection of heating and A/C unit -2- without pre-tension.

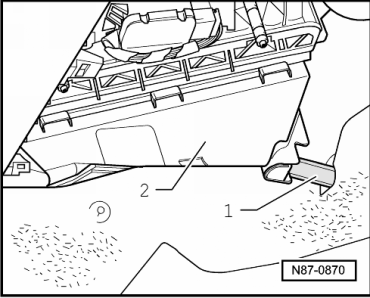

Fig 1: Identifying Front Evaporator Water Drain Hose And Valve
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
The condensation water hose must not be constricted in its cross section through the insulation mat.

-- Rework the insulation mat, if necessary.

The condensation water hose must sit securely on the connection on the heating and A/C unit.

-- The valve is located in the lower right of the engine compartment below the plenum chamber bulkhead.

NOTE:

For the purpose of a better illustration, the valve -1- is shown with subframe removed.

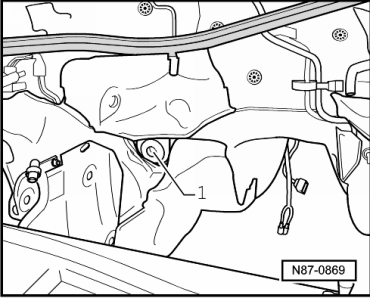

Fig 2: Identifying Drive Assembly Valve

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The condensation drainage valve may not be bonded by wax or underbody protection, it must close correctly.

-- Raise the vehicle and check the valve -1- from underneath.
