Rear A/C Display Control Head -E265- Connectors

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

Terminal assignment of multi-pin connectors A and B on rear side of Rear A/C Display Control Head -E265-

Special Tools And Workshop Equipment Required

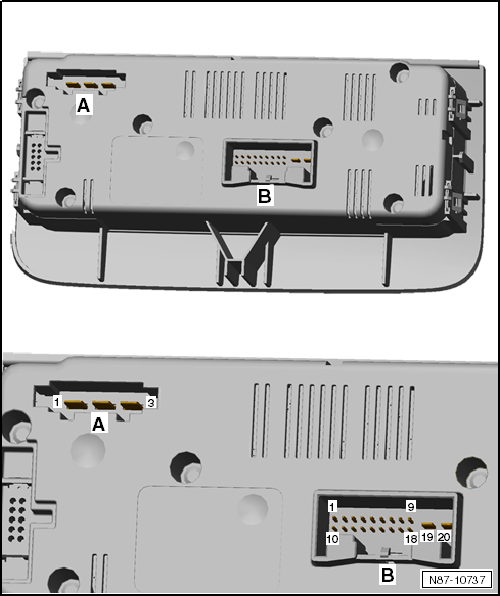

Fig 1: Rear A/C Display Control Head -E265- Connectors
GWWN87-10737Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
