Component Location Overview - Components Outside Of Passenger Compartment, CLIMATRONIC
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Under certain conditions, the desiccant bag/dryer cartridge no longer needs to be replaced each time the refrigerant circuit is opened on A/C systems with refrigerant R1234yf. Refer to REFRIGERANT CIRCUIT .
Under certain conditions, the dryer bag no longer needs to be replaced each time the refrigerant circuit is opened on A/C systems with refrigerant R134a. .

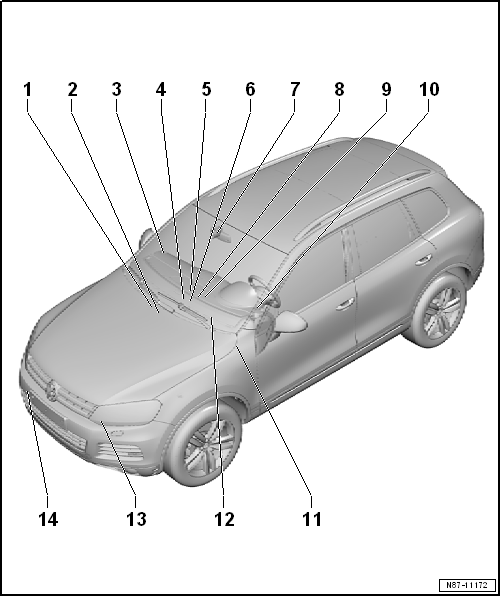

- Air Quality Sensor -G238-
- Removing and installing. Refer to AIR QUALITY SENSOR -G238-, REMOVING AND INSTALLING
- High Pressure Sensor -G65-
- Removing and installing. Refer to HIGH PRESSURE SENSOR -G65-, REMOVING AND INSTALLING .
- Right Front Upper Body Vent Temperature Sensor -G386-
- Removing and installing. Refer to RIGHT FRONT UPPER BODY VENT TEMPERATURE SENSOR -G386- AND LEFT FRONT UPPER BODY VENT TEMPERATURE SENSOR -G385-, REMOVING AND INSTALLING .
- Fresh Air Blower -V2-
- Removing and installing. Refer to REAR FRESH AIR BLOWER -V80-, REMOVING AND INSTALLING .
- Evaporator Temperature Sensor -G308-
- Removing and installing. Refer to EVAPORATOR TEMPERATURE SENSOR -G308-, REMOVING AND INSTALLING .
- Sunlight Photo Sensor -G107-
- Removing and installing. Refer to SUNLIGHT PHOTO SENSOR -G107-, REMOVING AND INSTALLING .
- A/C Humidity Sensor -G260-
- Checking: via the Vehicle Electrical System Control Module -J519- using the Vehicle Diagnostic Tester in "Guided Fault Finding" function an. Refer to Wiring Diagram.
- Removing and installing. Refer to A/C HUMIDITY SENSOR -G260-, REMOVING AND INSTALLING .
- Right Footwell Vent Temperature Sensor -G262-
- Removing and installing. Refer to SUNLIGHT PHOTO SENSOR -G107-, REMOVING AND INSTALLING .
- Climatronic Control Module -J255-
- The Climatronic Control Module -J255-, Front A/C Display Control Head -E87- and the Instrument Panel Temperature Sensor -G56- with the Interior Temperature Sensor Fan -V42- are one component that cannot be disassembled.
- Removing and installing. Refer to DISPLAY AND CONTROL HEAD, REMOVING AND INSTALLING .
- Left Front Upper Body Vent Temperature Sensor -G385-
- Removing and installing. Refer to RIGHT FRONT UPPER BODY VENT TEMPERATURE SENSOR -G386- AND LEFT FRONT UPPER BODY VENT TEMPERATURE SENSOR -G385-, REMOVING AND INSTALLING .
- Recirculation Pump -V55-
- Left Footwell Vent Temperature Sensor -G261-
- Removing and installing. Refer to LEFT FOOTWELL VENT TEMPERATURE SENSOR -G261-, REMOVING AND INSTALLING .
- A/C Compressor Regulator Valve -N280-
- The A/C Compressor Regulator Valve -N280- and A/C compressor cannot be disassembled.
- A/C compressor, removing and installing. Refer to A/C COMPRESSOR, REMOVING AND INSTALLING .
- Outside Air Temperature Sensor -G17-
- Removing and installing. Refer to OUTSIDE AIR TEMPERATURE SENSOR -G17-, REMOVING AND INSTALLING .
