Rear Vent, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Unclip the rear vent -1- at the indicated locations -arrow- using the :3409  and then remove it from the center console.

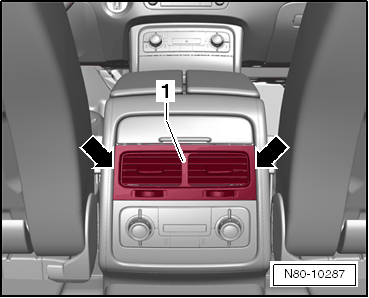

Fig 1: Unclip The Rear Vent -1- At The Indicated Locations -Arrow- Using A 3409
GWWN80-10287Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
