Front Passenger Vents In The Instrument Panel, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

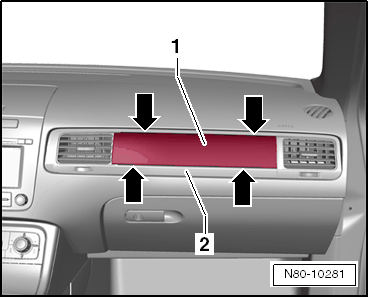

-- Remove the trim -1- from the vent unit -2- at the indicated locations -arrows- using the :3409 .

Fig 1: Unclipping Trim -1- From Vent Unit -2- At Indicated Locations -Arrows-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

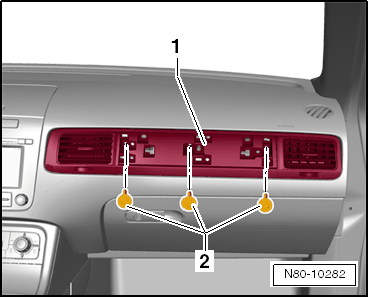

-- Remove screws -2-.

Fig 2: Remove Screws -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Pull vent unit -1- out of the instrument panel using the :3409 .

-- Disconnect the vent illumination harness connector.
