Front Passenger Side FOOTWELL Vent, Removing And Installing: Removing
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the footwell trim panel on the front passenger side. Refer to FOOTWELL COVERS, REMOVING AND INSTALLING .

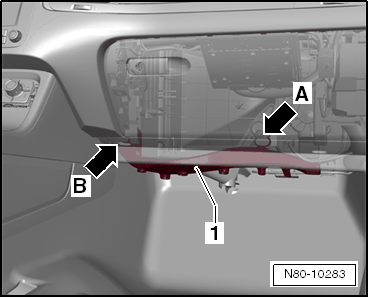

-- Remove footwell vent -1- from the mount -arrow A-.
-- Disconnect the connector from the Right Footwell Vent Temperature Sensor -G262-.
-- Remove footwell vent -1- from the heater -arrow B-.
