Fresh Air Intake, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the plenum chamber cover. Refer to PLENUM CHAMBER BULKHEAD .

-- Remove the Engine Control Module (ECM). Refer to ENGINE CONTROL MODULE -J623-, REMOVING AND INSTALLING ENGINE CONTROL MODULE .

-- Loosen the ECM bracket to gain access to the nuts -1-.

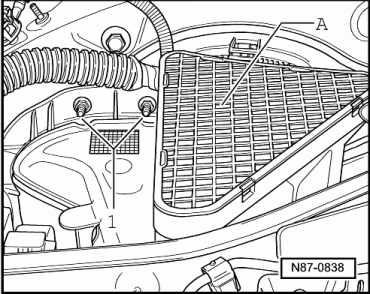

Fig 1: Identifying Air Grille & Screws

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the nuts -1- and the air grille -A-.

-- Grab the air intake shroud from the top and loosen the clamps -1-.

Fig 2: Identifying Retaining Clamps

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the air intake shroud from the plenum chamber.
