Fresh Air Intake, Removing And Installing: Installing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

Install In Reverse Order Of Removal. Note The Following:

-- Check the water drain valve -arrow- for dirt before installing it. Clean water drain valve if necessary.

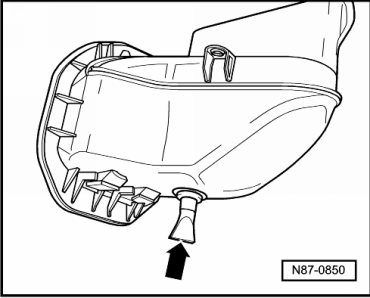

Fig 1: Identifying Water Drain Valve
GWWN87-0850Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
