Driver Vents In The Instrument Panel, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

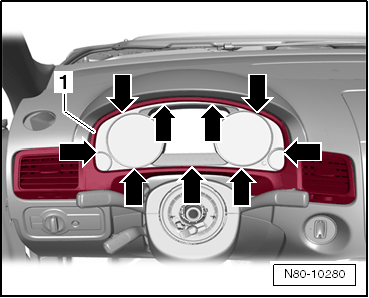

-- Use the :3409 to loosen instrument cluster trim panel -1- at the indicated locations -arrows-.

Fig 1: Detaching Instrument Cluster Trim -1- At Indicated Locations -Arrows-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the instrument cluster trim with vent -1- from the instrument panel.

-- Disconnect the vent illumination harness connector.

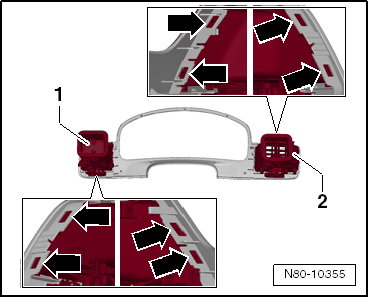

-- Unclip the vents -1 and 2- from the marked positions -arrows- with the :3409 .
