Driver Side FOOTWELL Vent, Removing And Installing: Removing
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the knee airbag. Refer to KNEE AIRBAG, REMOVING AND INSTALLING .
CAUTION:
Pyrotechnic components can unintentionally deploy.
Risk of injury.
- Discharge static electricity: Briefly touch the door striker pin.
-- Remove the instrument panel. Refer to INSTRUMENT PANEL .
-- Completely detach the module carrier and pull slightly forward.

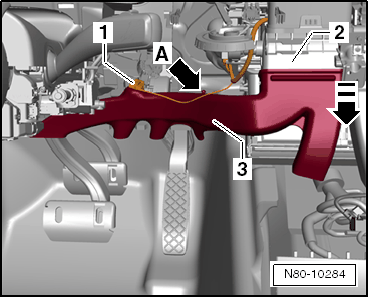

-- Disconnect the connector from the Left Footwell Vent Temperature Sensor -G261- -1-.
-- Unhook the footwell vent -3- from the mount -arrow A- and remove it from the heater -2- in direction of -arrow-.
