Right Front Upper Body Vent Temperature Sensor -G386- And Left Front Upper Body Vent Temperature Sensor -G385-, Removing And Installing: Removing
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the side instrument panel trim panel. Refer to Instrument Panel .
-- Remove the fuse panel and move it to the side. Refer to Fuse Panel .

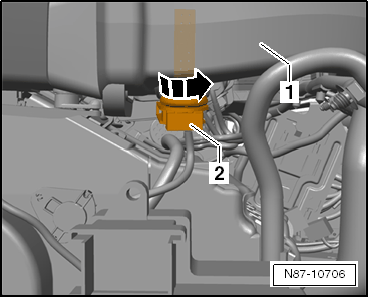

-- Disconnect the connector from the temperature sensor -2-.
-- Turn the temperature sensor approximately 90° in direction of -arrow- out of air guide channel -1-.
