Right Temperature Door Motor -V159-, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the instrument panel. .

-- Disconnect the connector from the Right Temperature Door Motor -V159- -F-.

-- Loosen the screws -1- and remove the Right Temperature Door Motor -V159- -F- from the heater and A/C unit.

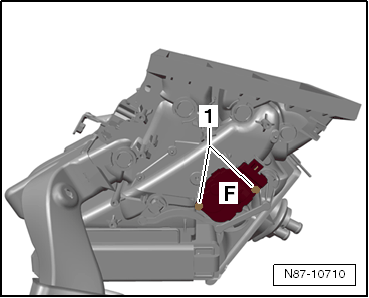

Fig 1: Identifying Screws -1- And Right Temperature Door Motor -F-
GWWN87-10710Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
