Right Rear Temperature Door Motor -V314-, Removing And Installing: Removing
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the side trim panel on the left side of the luggage compartment. Refer to LUGGAGE COMPARTMENT TRIM PANELS .

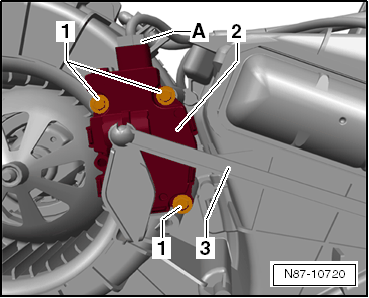

-- Disconnect the lever -3- from the Right Rear Temperature Door Motor -V314- -2-.
-- Remove the bolts -1-.
-- Disconnect the connector -A- from the Right Rear Temperature Door Motor -V314- -2- and remove the actuator.
