Right Indirect Ventilation Door Control Motor -V453-, Removing And Installing: Removing
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the front passenger side airbag unit. Refer to Airbag .
-- Remove the left airbag unit bracket.

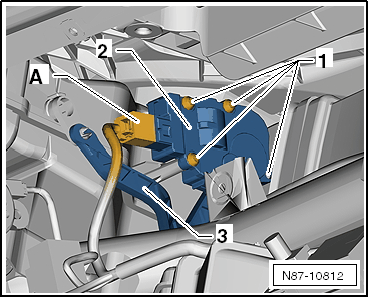

-- Remove the three screws -1- and the Right Indirect Ventilation Door Control Motor -V453- -2-. Leave the kinematics lever -3- on the shaft for the indirect ventilation door.
