Left Rear Temperature Door Motor -V313-, Removing And Installing: Removing
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
-- Bring the rear heater and Air Conditioning (A/C) unit into the service position. Refer to REAR HEATER AND A/C UNIT, SERVICE POSITION .

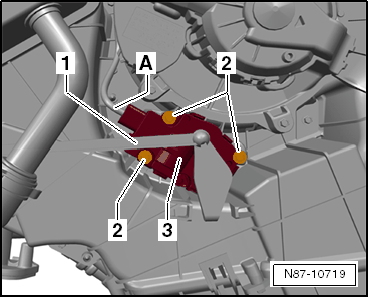

-- Disengage the lever -1- on the Left Rear Temperature Door Motor -V313-.
-- Remove the bolts -2-.
-- Disconnect the connector -A- from the Left Rear Temperature Door Motor -V313- -3- and remove the motor.
