Indirect Ventilation Door Motor -V213-, Removing And Installing: Installing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Install the Indirect Ventilation Door Motor -V213- in reverse order of removal. Tightening specification for the screws: 1.5 Nm.

-- Adapt the address again using the Vehicle Diagnostic Tester.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

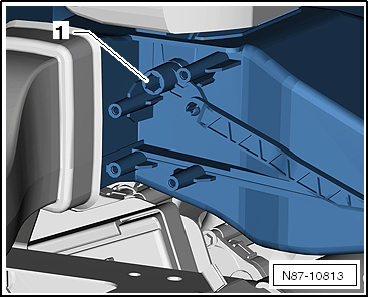

Is the kinematics lever -1- off the shaft?

-- Remove the indirect ventilation grille (in the top of the instrument panel) using a :3409 .

-- Set the indirect ventilation door vertical and the instrument panel ventilation door horizontal and then install the kinematics lever -1- on the shaft.

-- Install the Indirect Ventilation Door Motor -V213- on the kinematics lever mount.
