Fresh Air/Recirculating Air/Back Pressure Door Motor -V425-, Removing And Installing: Removing
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the footwell trim panel on the front passenger side. Refer to STORAGE COMPARTMENTS, COVERS AND TRIM .
-- Disconnect the connector -arrow A- from the Fresh Air/Recirculating Air/Back Pressure Door Motor -V425- -1-.

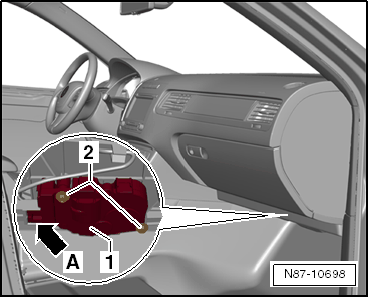

Fig 1: Identifying Harness Connector -Arrow A-, Fresh Air/Recirculating Air/Back Pressure Door Motor -1- & Screws -2-
-- Remove screws -2-.
-- Remove the adjustment motor.
