Wheel Bearing Housing, Servicing: Notes

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools And Workshop Equipment Required

Engine and Gearbox Jack:VAS6931
Hydraulic Press - Bushing Assembly Tool Kit :T10230
Hydraulic Press:VAS6178 with Bearing Installer - Wheel Hub/Bearing Kit- Adapter 13:T10205/13
Engine/Gearbox Jack Adapter - Wheel Hub Support:T10149
Pneumatic/Hydraulic Foot Pump:VAS6179
Torque Wrench 1332 40-200 Nm :VAG1332
Tensioning Strap:T10038

Pressing Out the Bonded Rubber Bushing

WARNING:

Before starting work, stabilizer bars must be coupled in vehicles with decoupling stabilizer bars. Otherwise, there is the danger of injury caused by unintentional coupling.

-- Remove the wheel.

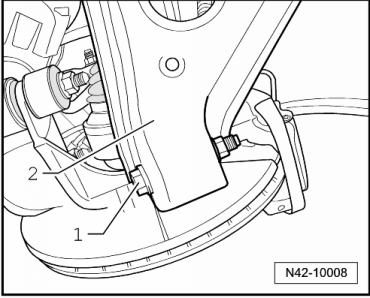

-- Remove the lower control arm -2- from wheel bearing housing, remove bolt -1- to do so.

Fig 1: Identifying Bolt For Control Arm, Removal

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

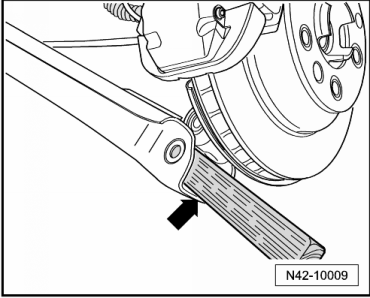

-- Install wood block between control arm -arrow- and wheel bearing housing.

Fig 2: Identifying Wood Block Between Control Arm And Wheel Bearing Housing, Installation

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

WARNING:

Without this wood block inserted, there is the danger of injury when lower control arm moves back to initial position.

-- Install tools onto the wheel bearing housing, as shown in illustration.

Fig 3: Identifying Tools Installed On Wheel Bearing Housing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Hydraulic Press - Bushing Assembly Tool Kit - Nut:T10230/2
Hydraulic Press - Bushing Assembly Tool Kit - Thrust Piece:T10230/13
Hydraulic Press - Bushing Assembly Tool Kit - Press Plate:T10230/6
Hydraulic Press - Bushing Assembly Tool Kit - Tube:T10230/5
Hydraulic Press - Bushing Assembly Tool Kit - Thrust Piece:T10230/4
Hydraulic Press - Bushing Assembly Tool Kit-Pipe:T10230/3
Hydraulic Press - Bushing Assembly Tool Kit - Thrust Piece:T10230/7
Hydraulic Press:VAS6178 with Bearing Installer - Wheel Hub/Bearing Kit- Adapter 13:T10205/13

CAUTION:

Before pressing out, place the Engine and Gearbox Jack:VAS6931 with the universal mount under the cylinder since the cylinder may fall down at the end of the pressing out procedure.

-- Press out the bonded rubber bushing.
