Spacer Installed Position

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

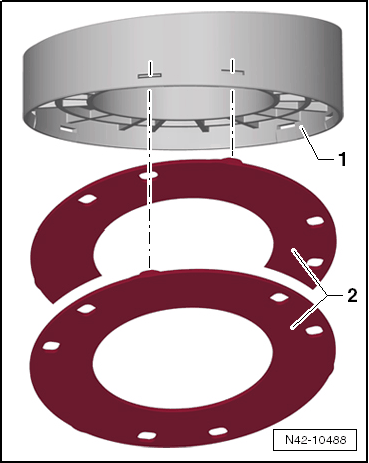

-- The guide tabs of the spacers -2- must engage in the guide openings of the spring washer -1-.

Fig 1: Front Steel Spring Shock Absorber Spacer Installation Position

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

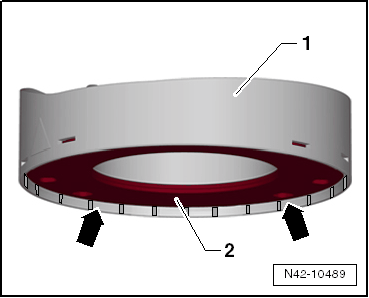

-- Ensure that the spacers -2- engage all around the retaining tabs -arrows- of the spring washer -1-.

Fig 2: Ensure That The Spacers -2- Engage All Around The Retaining Tabs

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
