Overview - Stabilizer Bar: Notes

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

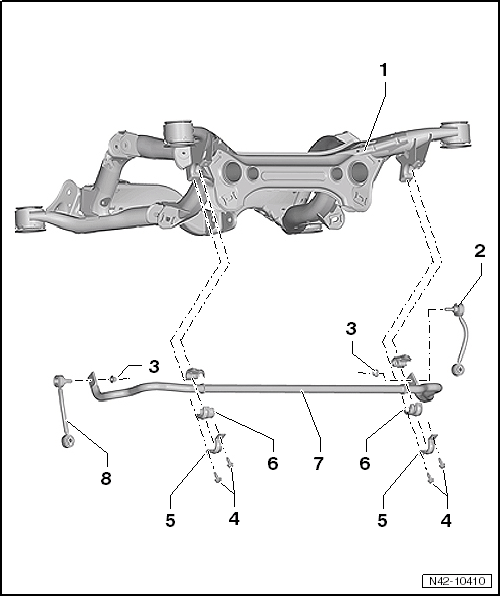

Fig 1: Exploded View Of Stabilizer Bar Assembly

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Subframe
Right Connecting Link
- Connects the stabilizer bar with the shock absorber/wheel bearing housing
- For the allocation. Refer to the Parts Information.
- Removing and installing. Refer to COUPLING ROD, REMOVING AND INSTALLING .
Nut
- 100 Nm
- Always replace if removed
- Counterhold at the inner multipoint fitting of the bolt when tightening
- Tighten in the curb weight position. Refer to RAISING THE REAR AXLE TO THE CURB WEIGHT POSITION .
- Self-locking
Bolt
- 50 Nm
- Always replace if removed
- Tighten uniformly
- Tighten in the curb weight position. Refer to RAISING THE REAR AXLE TO THE CURB WEIGHT POSITION .
Clamp
- From MY 2015 on vehicles with a tire pressure monitoring system a bracket for the Tire Pressure Monitoring Control Module -J502- is additionally bolted on the clamp. Refer to Figure.
Bearing
- Always replace the complete bearing
- Two-part on both sides of the vehicle
- Connected to one another via retaining tabs
- Removing and installing. Refer to STABILIZER BAR MOUNT, REMOVING AND INSTALLING .
- For the allocation. Refer to the Parts Information.
Stabilizer Bar
- For the allocation. Refer to the Parts Information.
- Removing and installing. Refer to STABILIZER BAR, REMOVING AND INSTALLING .
Left Connecting Link
- Connects the stabilizer bar with the shock absorber/wheel bearing housing
- For the allocation. Refer to the Parts Information.
- Removing and installing. Refer to COUPLING ROD, REMOVING AND INSTALLING .
