Special Tools

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Special Tools

GWWW40-0126

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special Tools And Workshop Equipment Required

Engine and Gearbox Jack:VAS6931
Tensioning Strap:T10038
Engine/Gearbox Jack Adapter - Wheel Hub Support:T10149

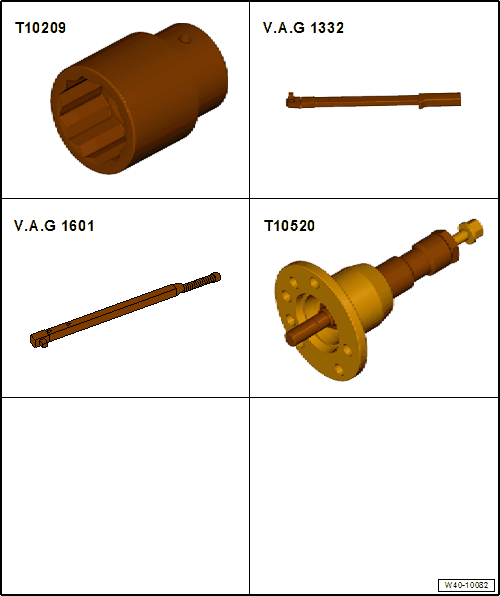

GWWW40-10082

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special Tools And Workshop Equipment Required

Driveshaft Socket - 32mm:T10209
Drive Shaft Remover:T10520
Torque Wrench 1332 40-200 Nm :VAG1332
Torque Wrench 1601:VAG1601

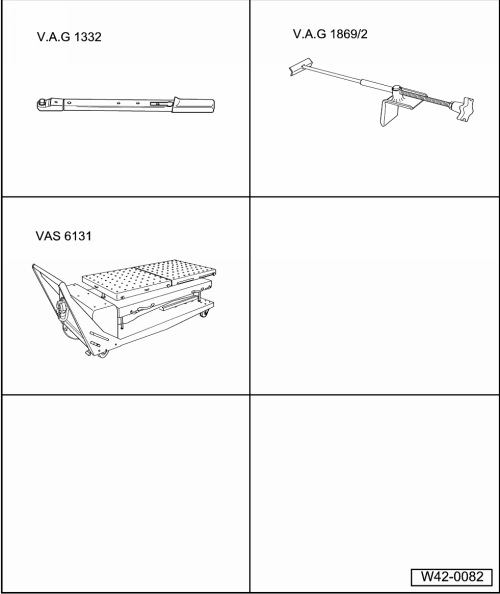

Fig 2: Identifying Special Tools -- Subframe, Removing And Installing

GWWW42-0082

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special Tools And Workshop Equipment Required

Torque Wrench 1332 40-200 Nm :VAG1332
Brake Pedal Actuator:VAG1869/2 .
Scissor Lift Table:VAS6131B
Scissor Lift Table - Touareg Set - Support:VAS6131/6-5
Scissor Lift Table - Touareg Set - Support:VAS6131/6-7

GWWW42-10059

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special Tools And Workshop Equipment Required

Engine and Gearbox Jack:VAS6931
Torque Wrench 1332 40-200 Nm :VAG1332
Torque Wrench 1331 5-50 Nm :VAG1331

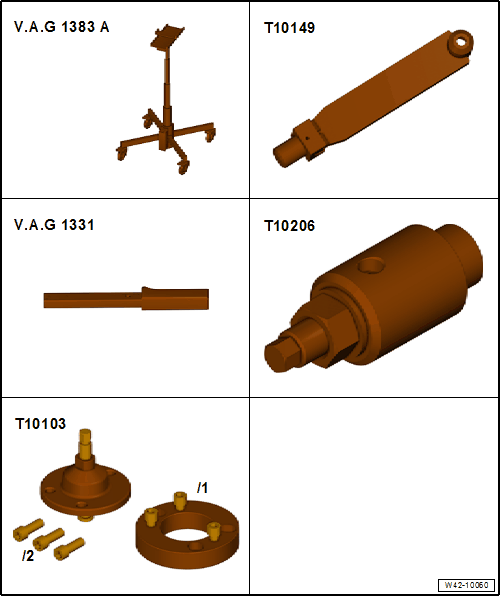

GWWW42-10060

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special Tools And Workshop Equipment Required

Engine and Gearbox Jack:VAS6931
Engine/Gearbox Jack Adapter - Wheel Hub Support:T10149
Torque Wrench 1331 5-50 Nm :VAG1331
Driveshaft Fitting Tool:T10206
Drive Axle Remover - Adapter Plate:T10103/1

Fig 3: Identifying Special Tools -- Wheel Bearing Housing, Servicing

GWWW42-10007

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special Tools And Workshop Equipment Required

Engine and Gearbox Jack:VAS6931
Hydraulic Press - Bushing Assembly Tool Kit :T10230
Hydraulic Press:VAS6178 with Bearing Installer - Wheel Hub/Bearing Kit- Adapter 13:T10205/13
Engine/Gearbox Jack Adapter - Wheel Hub Support:T10149
Pneumatic/Hydraulic Foot Pump:VAS6179
Torque Wrench 1332 40-200 Nm :VAG1332

Fig 4: Identifying Special Tools -- Subframe, Servicing

GWWW42-10010

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special Tools And Workshop Equipment Required

Engine and Gearbox Jack:VAS6931
Puller - Kukko Counterstay:22/2 -4-
Puller - Kukko Internal - 20-30mm:21/4 -1-
Puller - Kukko Separating Tool - Diameter 22-115mm:15/2 -3-
Hydraulic Press:VAS6178 with Bearing Installer - Wheel Hub/Bearing Kit- Adapter 13:T10205/13
Tensioning Strap:T10038
Pneumatic/Hydraulic Foot Pump:VAS6179
Torque Wrench 1332 40-200 Nm :VAG1332

Fig 5: Identifying Special Tools -- Subframe, Securing

GWWW42-10017

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special Tools And Workshop Equipment Required

Assembly Carrier Locating Pins:T10300
Torque Wrench 1332 40-200 Nm :VAG1332
Torque Wrench 1331 5-50 Nm :VAG1331
Engine and Gearbox Jack:VAS6931 or
Scissor Lift Table:VAS6131

GWWW42-10031

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special Tools And Workshop Equipment Required

Engine/Gearbox Jack Adapter - Wheel Hub Support:T10149
Engine and Gearbox Jack:VAS6931
Torque Wrench 1332 40-200 Nm :VAG1332
Torque Wrench 1331 5-50Nm :VAG1331
Torque Wrench 1601:VAG1601

GWWW42-10032

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special Tools And Workshop Equipment Required

Engine/Gearbox Jack Adapter - Wheel Hub Support:T10149
Engine and Gearbox Jack:VAS6931
Torque Wrench 1332 40-200 Nm :VAG1332

GWWW42-10033

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special Tools And Workshop Equipment Required

Drive Axle Remover:T10103 or Intake Manifold Release Tool:T10520
Drive Axle Remover - Adapter Plate:T10103/1
Drive Axle Socket - 32mm: T10209
Drive Axle Fitting Tool:T10206
Torque Wrench 1601:VAG1601
Torque Wrench 1332 40-200 Nm :VAG1332
Torque Wrench 1331 5-50 Nm :VAG1331

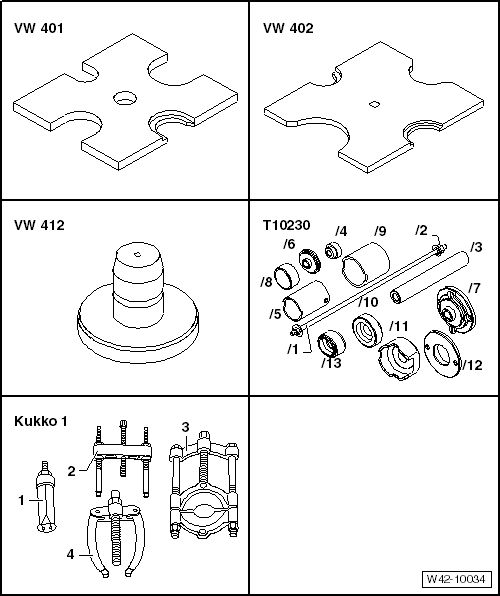

Fig 6: Special Tools And Workshop Equipment Required

GWWW42-10034

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special Tools And Workshop Equipment Required

Press Plate:VW401
Press Plate:VW402
Press Piece - Multiple Use:VW412
Hydraulic Press - Bushing Assembly Tool Kit :T10230
Puller - Kukko Separating Tool - Diameter 25-155mm with Puller - Kukko Quick Action Separating Tool - 25-155mm:15/3 with 17/3

Fig 7: Identifying Special Tools -- Steel Spring Shock Absorber

GWWW42-10035

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special Tools And Workshop Equipment Required

Socket:3165
Press Piece - 28 x 210mm:VW420
Shock Absorber Set:T10001
Torque Wrench 1332 40-200 Nm :VAG1332
Spring Compressor Kit:VAG1752
Spring Compressor Kit - Spring Tensioner:VAG1752/1
Spring Compressor Kit - Spring Retainer w/Inserts:VAG1752/5
Spring Compressor Kit - Strut Clamping Block:VAG1752/20
Kukko 45/2
Ratchet (Commercially Available)

Fig 8: Special Tools And Workshop Equipment Required

GWWW42-10041

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special Tools And Workshop Equipment Required

Wrench - Strut Socket - 21mm:3186
Guide Pins:T10093
Torque Wrench 1332 40-200 Nm :VAG1332
Spring Compressor Kit - Spring Tensioner:VAG1752/1
Spring Compressor Kit - Strut Clamping Block:VAG1752/20
Spring Compressor Kit - Spring Retainer with Inserts:VAG1752/3A
Spring Compressor Kit - Spring Retainer w/Inserts:VAG1752/7
Release Tool Set:VAS1978/35

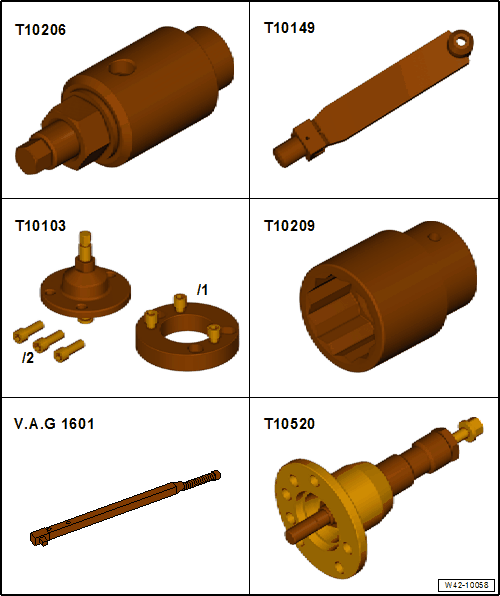

GWWW42-10058

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special Tools And Workshop Equipment Required

Driveshaft Fitting Tool:T10206
Engine/Gearbox Jack Adapter - Wheel Hub Support:T10149
Drive Axle Remover - Adapter Plate:T10103/1
Driveshaft Socket - 32mm: T10209
Torque Wrench 1601:VAG1601
Drive Shaft Remover:T10520

Special Tools And Workshop Equipment Required

Hydraulic Press - Subframe Bushing Tool Kit:T10301

Fig 9: Assembly Tool T10301
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Torque Wrench 1410:VAG1410

Fig 10: Identifying Torque Wrench VAG 1410
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Clamping Pliers:VAG1682A

Fig 11: CV Joint Boot Clamp Tool V.A.G 1682
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Trim Removal Wedge:3409

Fig 12: 3409 Wedge
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
