SUBFRAME, Securing: Notes

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools And Workshop Equipment Required

Assembly Carrier Locating Pins:T10300
Torque Wrench 1332 40-200 Nm :VAG1332
Torque Wrench 1331 5-50 Nm :VAG1331
Engine and Gearbox Jack:VAS6931 or
Scissor Lift Table:VAS6131

-- Place the Engine and Gearbox Jack:VAS6931 or the necessary mounts under the subframe.

-- Unscrew one of the front bolts of the subframe -arrow-.

Fig 1: Subframe Bolt

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the Assembly Carrier Locating Pins:T10300 -1-.

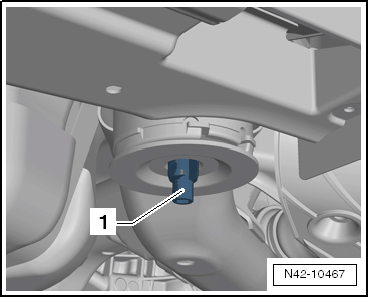

Fig 2: Screw In The T10300 -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Screw in the Assembly Carrier Locating Pins:T10300 by hand to the marking -A-.

Fig 3: Threading In Locating Pins T10300 Up To Marking

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Tighten the Assembly Carrier Locating Pins:T10300 to 30 Nm while counter-holding the sleeve at the wrench surfaces using an open-end wrench to prevent it from turning.

-- The same procedure must be performed for the second rear bolt of the subframe.

The subframe position is now secured.

The removal of the Assembly Carrier Locating Pins:T10300 is performed in reverse order.
