SUBFRAME, Repairing, Bonded Rubber Mount In The Forward Direction Of Travel: Removing: Notes

Vehicles With An Air Spring Shock Absorber

-- Activate the vehicle lift mode and place the vehicle on the lifting platform. Refer to VEHICLE LIFT MODE .

Continuation for All Vehicles

-- Secure the exhaust system on the subframe, as shown in the figure, using the Tensioning Strap:T10038  -1-.

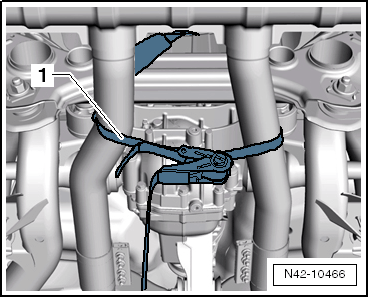

Fig 1: Secure The Exhaust System On The Subframe

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Detach the rear part of the exhaust system. Refer to MUFFLER AND CATALYTIC CONVERTERS [CGRA] , EMISSIONS CONTROL [CGFA] and EXHAUST SYSTEM COMPONENTS [CATA] .

Vehicles With An Air Spring Shock Absorber

Fig 2: Spring Shock Absorber And Threaded Connection

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Loosen the threaded connection -arrow- between the air spring shock absorber -1- and the coupling rod at the wheel bearing housing.

-- Remove the bolt.

Vehicles With A Steel Spring Shock Absorber

Fig 3: Steel Spring Shock Absorber And Threaded Connection

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Loosen the threaded connection -arrows- between the steel spring shock absorber -1- and the coupling rod at the wheel bearing housing.

-- Install the block of wood between the subframe -1- and the upper rear transverse link -2-.

Fig 4: Steel Spring Shock Absorber And Upper Rear Transverse Link

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Press the axle down with a block of wood.

-- Remove the bolt.

Continuation For All Vehicles

-- Place the Engine and Gearbox Jack:VAS6931  under the subframe.

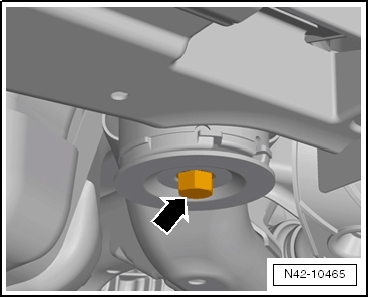

-- Remove the front bolts -1- for the subframe.

Fig 5: Subframe Bolt

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Place the Engine and Gearbox Jack:VAS6931  under the subframe.

-- Lower the subframe -1-.

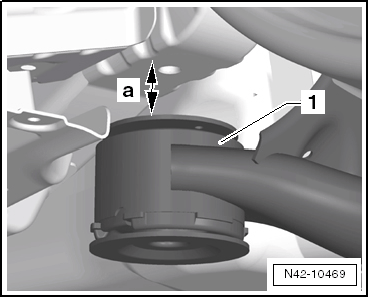

Fig 6: Lower The Subframe -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

a  - maximum 40 mm

-- Pry off the cover -1- with a screwdriver for example -arrow-.

Fig 7: Pry Off The Cover

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Pressing Out The Bonded Rubber Bushing

-- Mount the tools as illustrated.

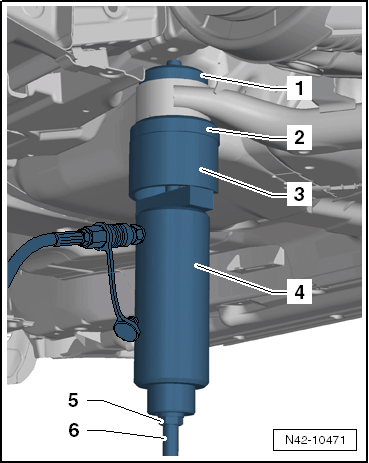

Fig 8: Mount The Tools As Illustrated.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Hydraulic Press - Subframe Bushing Tool Kit - Thrust Piece:T10301/5
2. Hydraulic Press - Subframe Bushing Tool Kit - Support Ring:T10301/4  .
3. Hydraulic Press - Subframe Bushing Tool Kit - Tube:T10301/3
4. Hydraulic Press:VAS6178  with Bearing Installer - Wheel Hub/Bearing Kit- Adapter 13:T10205/13
5. Hydraulic Press - Subframe Bushing Tool Kit - Nut:T10301/2
6. Hydraulic Press - Subframe Bushing Tool Kit - Spindle:T10301/1

The chamfer on the outer diameter of the Hydraulic Press - Subframe Bushing Tool Kit - Support Ring:T10301/4  must face the subframe.

-- Press out the bonded rubber bushing.
