SUBFRAME, Repairing, Bonded Rubber Mount In The Backward Direction Of Travel: Removing: Notes

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

Vehicles with an Air Spring Shock Absorber

-- Activate the vehicle lift mode and place the vehicle on the lifting platform. Refer to VEHICLE LIFT MODE .

Continuation For All Vehicles

-- Raise the vehicle.

Vehicles with an Air Spring Shock Absorber

-- Loosen the threaded connection -arrow- between the air spring shock absorber -1- and the coupling rod at the wheel bearing housing.

Fig 1: Spring Shock Absorber And Threaded Connection

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolt.

Vehicles With A Steel Spring Shock Absorber

-- Loosen the threaded connection -arrows- between the steel spring shock absorber -1- and the coupling rod at the wheel bearing housing.

Fig 2: Steel Spring Shock Absorber And Threaded Connection

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the block of wood between the subframe -1- and the upper rear transverse link -2-.

Fig 3: Steel Spring Shock Absorber And Upper Rear Transverse Link

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Press the axle down with a block of wood.

-- Remove the bolt.

Continuation For All Vehicles

-- Place the Engine and Gearbox Jack:VAS6931 under the subframe.

-- Remove the front bolts -1- for the subframe.

Fig 4: Subframe Bolt

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Place the Engine and Gearbox Jack:VAS6931 under the subframe.

-- Lower the subframe -1-.

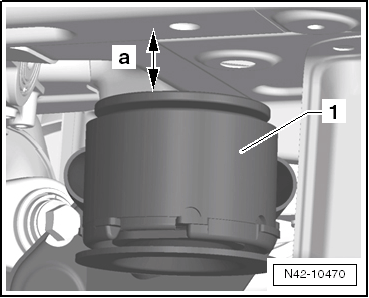

Fig 5: Lower The Subframe -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

a - maximum 40 mm

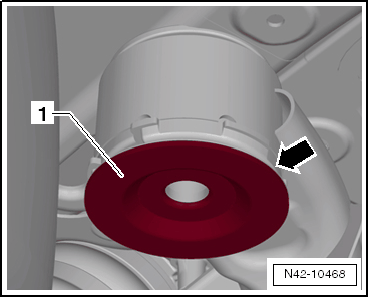

-- Pry off the cover -1- with a screwdriver for example -arrow-.

Fig 6: Pry Off The Cover

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
