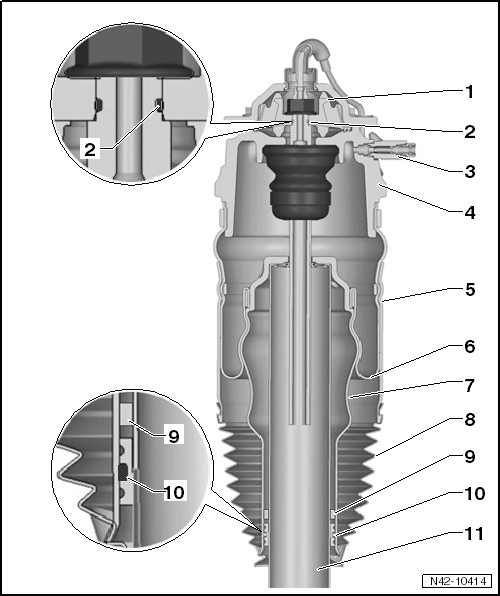

Rear Air Spring Shock Absorber Components
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
The following components are part of the air spring:
- Cover -item ) REAR AIR SPRING SHOCK ABSORBER COMPONENTS - Cover
- Outer guide -item ) REAR AIR SPRING SHOCK ABSORBER COMPONENTS - Outer Guide
- Boot -item ) REAR AIR SPRING SHOCK ABSORBER COMPONENTS - Boot
- Rolling piston -item ) REAR AIR SPRING SHOCK ABSORBER COMPONENTS - Rolling Piston
NOTE:
These components are installed together and cannot be disassembled.
- Bearing
- Seal
- Always replace
- Pressure Retaining Valve
- Cover
- Installed as part of air spring with -item ) REAR AIR SPRING SHOCK ABSORBER COMPONENTS - Outer Guide, -item ) REAR AIR SPRING SHOCK ABSORBER COMPONENTS - Boot and -item ) REAR AIR SPRING SHOCK ABSORBER COMPONENTS - Rolling Piston
- Cannot be removed and disassembled individually
- Outer Guide
- Installed as part of air spring with -item ) REAR AIR SPRING SHOCK ABSORBER COMPONENTS - Cover, -item ) REAR AIR SPRING SHOCK ABSORBER COMPONENTS - Boot and -item ) REAR AIR SPRING SHOCK ABSORBER COMPONENTS - Rolling Piston
- Cannot be removed and disassembled individually
- Boot
- Installed as part of air spring with -item ) REAR AIR SPRING SHOCK ABSORBER COMPONENTS - Cover, -item ) REAR AIR SPRING SHOCK ABSORBER COMPONENTS - Outer Guide and -item ) REAR AIR SPRING SHOCK ABSORBER COMPONENTS - Rolling Piston
- Cannot be removed and disassembled individually
- Rolling Piston
- Installed as part of air spring with -item ) REAR AIR SPRING SHOCK ABSORBER COMPONENTS - Cover, -item ) REAR AIR SPRING SHOCK ABSORBER COMPONENTS - Outer Guide and -item ) REAR AIR SPRING SHOCK ABSORBER COMPONENTS - Boot
- Cannot be removed and disassembled individually
- Boot
- Anti-Extraction Device
- Always replace
- Seal
- Always replace
- Shock Absorber
