Overview - Rear Air Spring Shock Absorber

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

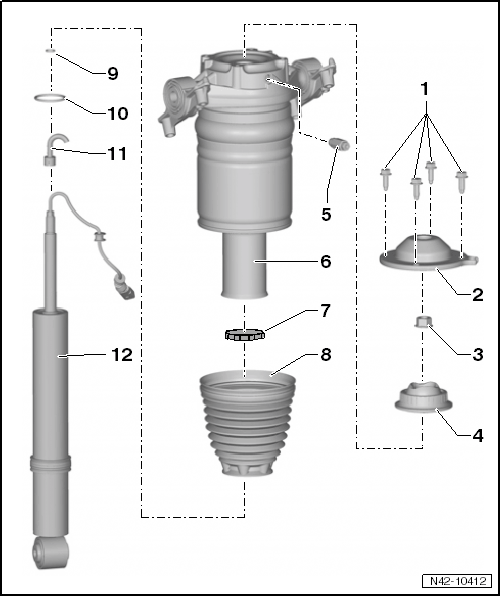

Fig 1: Exploded View Of Rear Air Spring Shock Absorber

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Bolt
- 27 Nm
- Quantity: 4
Cover
Nut
- 70 Nm
- Always replace if removed
Bearing
Pressure Retaining Valve
- 12 Nm
- Observe important information regarding removal and installation. Refer to PRESSURE RETAINING VALVE, REMOVING AND INSTALLING
- Removing and installing. Refer to PRESSURE RETAINING VALVE, REMOVING AND INSTALLING .
Air Spring
- Observe the information regarding air spring shock absorber repair. Refer to AIR SPRING SHOCK ABSORBER, REPAIR INFORMATION .
- When the vehicle has been driven 200, 000 km (124, 274 miles), if there is damage to an air spring, it is recommended that the opposite air spring is also replaced.
- With integrated buffer stop
Anti-Extraction Device
- Always replace
Boot
- Replace in the case of an installed air spring shock absorber. Refer to AIR SPRING SHOCK ABSORBER BOOT, REPLACING .
Seal
- Always replace
- Grease with Lubricating Grease:G 052 150 A2
Seal
- Always replace
- Grease with Lubricating Grease:G 052 150 A2
Cable Guide
Shock Absorber
- For the allocation. Refer to the Parts Information.
- Observe the information regarding air spring shock absorber repair. Refer to AIR SPRING SHOCK ABSORBER, REPAIR INFORMATION .
