Air Spring Shock Absorber
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
-- Before loosening the air line when installed, check whether the air spring is still filled with a residual pressure of approximately 3 bar (43.5 psi).

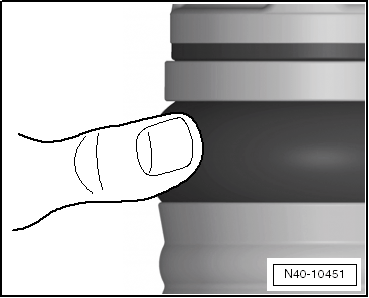

-- To do so push the air spring bead with thumbs. The bead must demonstrate noticeable resistance.
-- If significant resistance is not noticed, the air spring is not pressurized.
-- The vehicle can be driven up to 100 km (62 miles) with a depressurized air spring.
-- The air spring must be replaced together with the pressure-holding valve when the vehicle is driven more than 100 km (62 miles) with a depressurized air spring.
- Thoroughly clean connecting points and their surrounding areas before loosening.
- Place removed parts on a clean surface and cover them so that they do not get dirty. Use foil and paper. Only use lint-free cloths!
- Install only clean parts: remove the replacement parts from their packaging just before installing them.
- Only use lubricants indicated by part number.
- Carefully cover or seal opened components if the repair will not be done immediately.
