Air Spring Shock Absorber, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Activate the vehicle lift mode and place the vehicle on the lifting platform. Refer to VEHICLE LIFT MODE .

-- Bleed the rear air spring shock absorber with the Vehicle Diagnostic Tester.

-- Loosen the wheel bolts.

-- Raise the vehicle.

-- Remove the wheel.

During Assembly Work, Make Sure That No Indentations Form on the Protective Boot of the Air Spring Shock Absorber!

-- Remove the luggage compartment floor. Refer to LUGGAGE COMPARTMENT FLOOR SUPPORTS, REMOVING AND INSTALLING .

-- Remove the luggage compartment floor support. Refer to LUGGAGE COMPARTMENT FLOOR SUPPORTS, REMOVING AND INSTALLING .

-- Remove the plugs over the threaded connections of the air spring shock absorber.

-- Unscrew the threaded connections -arrows- of the air spring shock absorber.

Fig 1: Steel Spring Shock Absorber Threaded Connections

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the union nut -1- of the air line from the air spring shock absorber and seal both connections.

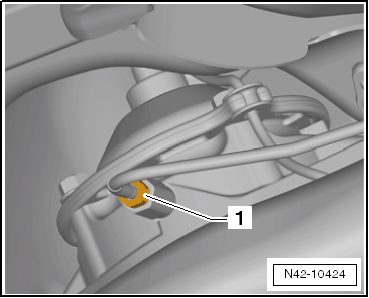

Fig 2: Identifying Union Nut -1- Of Air Line

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release and disconnect the harness connector -1- for the damping adjustment valve.

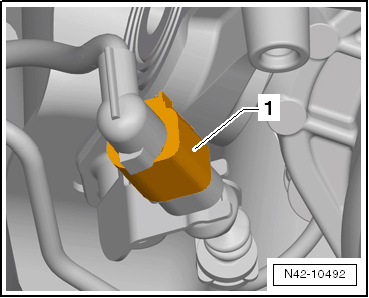

Fig 3: Damping Adjustment Valve Harness Connector

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Loosen the threaded connection -arrow- between the air spring shock absorber -1- and the coupling rod at the wheel bearing housing.

-- Remove the bolt.

-- Remove the steel spring shock absorber.

Fig 4: Spring Shock Absorber And Threaded Connection

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
