Air Spring Shock Absorber Boot, Replacing: Notes

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools And Workshop Equipment Required

Torque Wrench 1332 40-200 Nm :VAG1332

-- Remove the wheel.

-- Fill the air spring shock absorber with the Vehicle Diagnostic Tester.

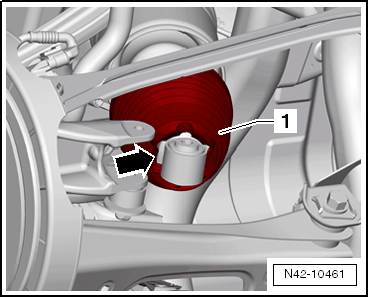

-- Remove the air spring shock absorber -1- from wheel bearing housing -arrow-.

Fig 1: Spring Shock Absorber And Threaded Connection

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the boot from the air spring.

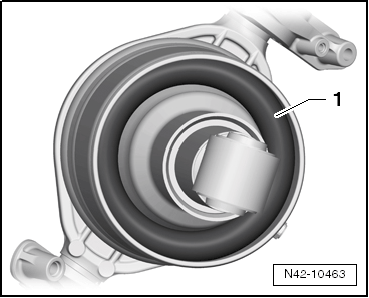

-- Tilt the air spring shock absorber inward and remove the boot -1- between the wheel bearing housing and the air spring shock absorber -arrow-.

Fig 2: Air Spring Shock Absorber Boot

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Check the boot -1- for damage.

Fig 3: Check The Rolling Bellows -1- For Damage.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The surface must be regular and uniform.

Installing

Fig 4: Air Spring Shock Absorber Boot

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Install in reverse order of removal. Note The Following:

CAUTION:

Always make sure the new boot is not damaged before installing it.

Pay Close Attention the Constriction Between the Wheel Bearing Housing and the Air Spring Shock Absorber -arrow- when Installing the Boot -1-.

-- Engage the boot groove at the shock absorber.

-- Fill the air spring shock absorber with the Vehicle Diagnostic Tester.

-- Install the wheel and tighten. Refer to WHEEL BOLT TIGHTENING SPECIFICATIONS .
