Overview - Rear Axle
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Welding and straightening work on supporting or wheel carrying components of the suspension is not permitted.
Always replace self-locking nuts.
Always replace corroded bolts/nuts.
Bonded rubber bushings have a limited range of motion. Therefore, the threaded connections of the components with bonded rubber bushings should only be tightened when the wheel bearing housing is lifted (curb weight position). Refer to RAISING THE REAR AXLE TO THE CURB WEIGHT POSITION .

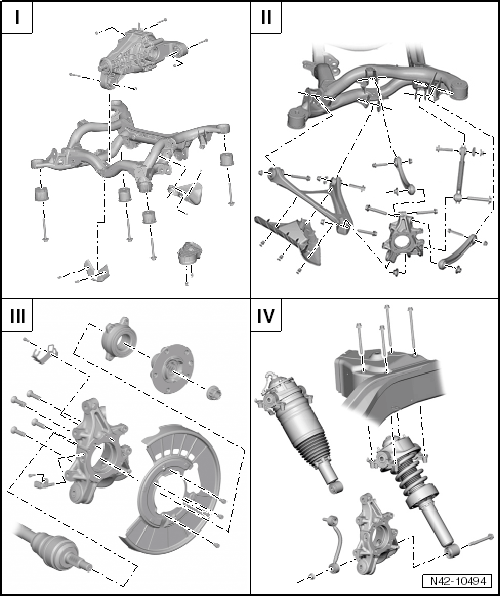

- - Subframe and Stone Deflector Assembly Overview. Refer to SUBFRAME AND STONE DEFLECTOR .
- - Control Arm and Tie Rod Assembly Overview. Refer to CONTROL ARM AND TIE ROD .
- - Overview - Wheel Bearing. Refer to WHEEL BEARING .
- - Rear Suspension Assembly Overview. Refer to OVERVIEW - REAR SUSPENSION .

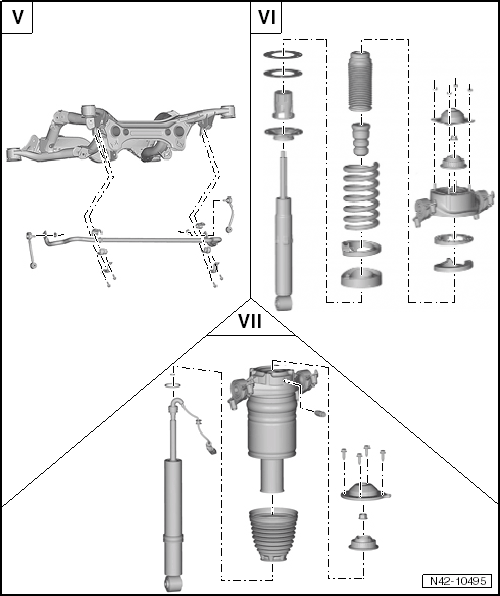

- V - Overview - Stabilizer Bar. Refer to STABILIZER BAR .
- VI - Steel Spring Shock Absorber Assembly Overview. Refer to STEEL SPRING SHOCK ABSORBER .
- VII - Rear Air Spring Shock Absorber. Refer to REAR AIR SPRING SHOCK ABSORBER .
