Overview - Drive Axle

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

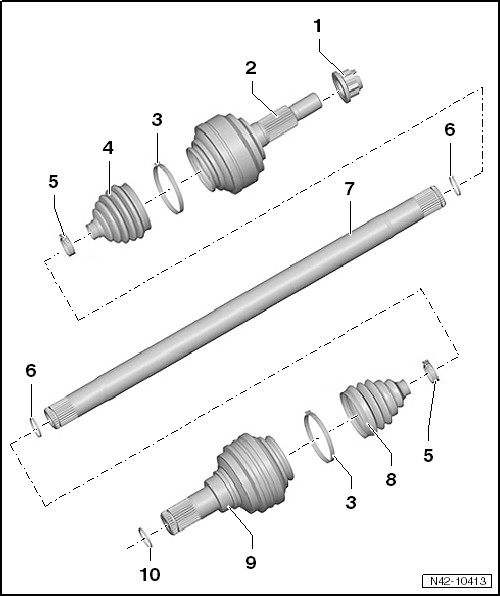

Fig 1: Drive Axle Assembly Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Nut
- 500 Nm
- Always replace if removed
Outer CV Joint
- Replace only as a complete unit.
- Removing and installing. Refer to DRIVE AXLE, DISASSEMBLING AND ASSEMBLING .
- For the allocation. Refer to the Parts Information
Clamp
- Always replace if removed
- Tensioning. Refer to Figure.
CV Boot
- Check for tears and scuffing
- Material: Hytrel polyelastomer
Clamp
- Always replace if removed
- Tensioning. Refer to Figure.
Circlip
- Always replace if removed
- Insert in shaft groove
Drive Axle
- For the allocation. Refer to the Parts Information.
CV Boot
- Check for tears and scuffing
- Material: Hytrel polyelastomer
Inner CV Joint
- Replace only as a complete unit.
- Removing. Refer to DRIVE AXLE, DISASSEMBLING AND ASSEMBLING
- For the allocation. Refer to the Parts Information.
Circlip
- Always replace if removed
- Insert into the inner CV joint groove
