Upper Transverse Link, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

Vehicles with a Steel Spring Shock Absorber

Fig 1: Steel Spring Shock Absorber And Threaded Connection

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Loosen the wheel bolts.

-- Raise the vehicle.

-- Remove the wheel.

-- Loosen the threaded connection -arrows- between the steel spring shock absorber -1- and the coupling rod at the wheel bearing housing.

-- Install the block of wood between the subframe -1- and the upper rear transverse link -2-.

-- Press the axle down with a block of wood.

-- Remove the bolt.

Fig 2: Steel Spring Shock Absorber And Upper Rear Transverse Link

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Vehicles with an Air Spring Shock Absorber

-- Activate the vehicle lift mode and place the vehicle on the lifting platform. Refer to VEHICLE LIFT MODE .

-- Bleed the rear air spring shock absorber with the Vehicle Diagnostic Tester.

-- Loosen the wheel bolts.

-- Raise the vehicle.

-- Remove the wheel.

-- Unscrew the threaded connection -arrow- for the coupling rod -1- from the rear level control system sensor at the upper front transverse link.

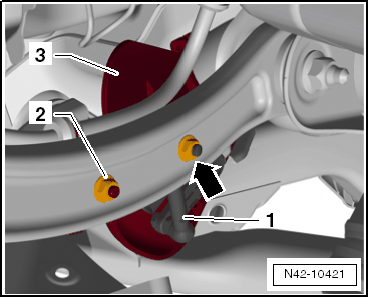

Fig 3: Threaded Connection, Coupling Rod -1 And Upper Front Transverse Link

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Vehicles With Automatic Headlamp Range Control

-- Unscrew the threaded connection -arrow- for the coupling rod -1- from the rear level control system sensor at the transverse link.

Continuation For All Vehicles

-- Remove the threaded connection of the cable bracket -2-.

-- Remove the stone chip protective molding -3-, if present.

-- Turn the wheel hub until one of the holes for the wheel bolts is on top.

-- Install the Engine/Gearbox Jack Adapter - Wheel Hub Support:T10149 with the wheel bolt -A-.

Fig 4: Install The T10149 With The Wheel Bolt -A-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Support the wheel bearing housing.

-- Unscrew the threaded connections -arrows- of the upper front transverse link -1-.

-- Remove the bolts.

-- Remove the upper front transverse link -1-.

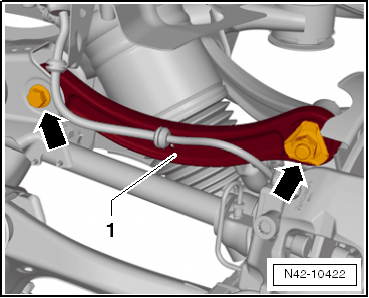

Fig 5: Unscrew The Threaded Connections -Arrows- Of The Upper Front Transverse Link -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
