Location On Transfer Case

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

Location on Transfer Case -arrow-.

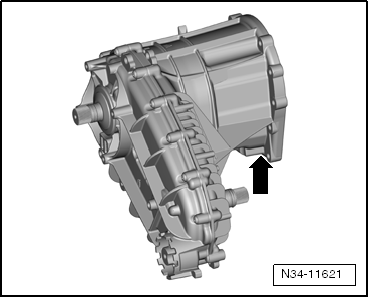

Fig 1: Locating Identification On Transfer Case -Arrow-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Transfer Case Code Letters -arrow 1- and Build Date -arrow 2-.

Fig 2: Identifying Transfer Case Code Letters -Arrow 1- And Build Date -Arrow 2-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

MPT	13	10	2009
I	I	I	I
I	I	I	I
Codes	Day	Month	Year of manufacture

Additional data depend on the manufacturing.
