Weld Sealant In The A-Pillar Area

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

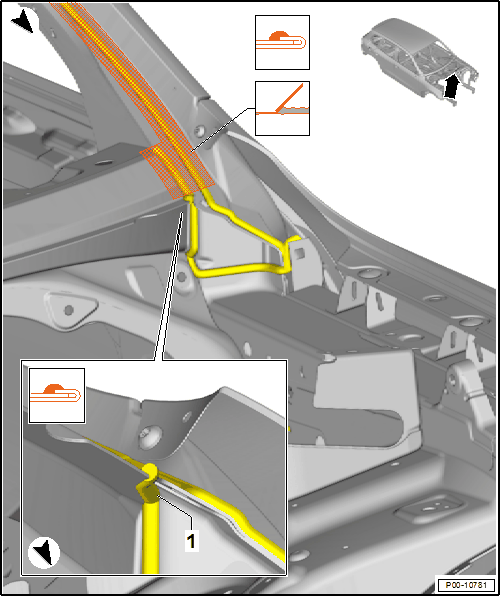

Left side shown, right side is a mirror image

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-Fine Seam Sealant
- For fine seam sealing, the projection of the sealant must be least 3 mm in diameter and a height of 0.5 mm must be ensured.
-Smoothing the Seal
- After applying the sealant the designated area must be smoothed.

NOTE:

When smoothing the sealed seam pay attention that the protected areas do not become uncovered. Enough PVC layer must cover the area.
