Sill Panel Weld Sealant
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

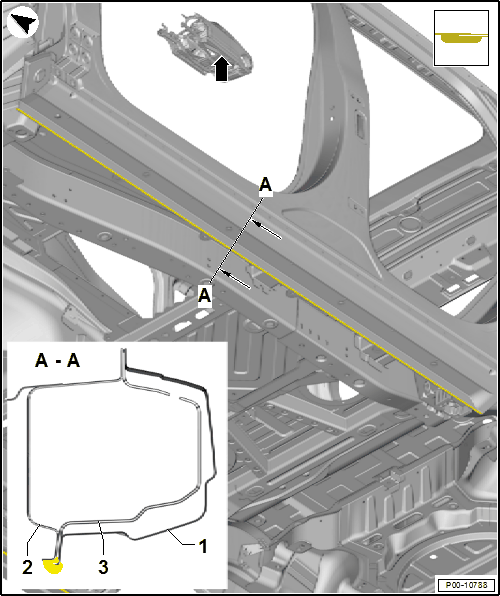

Left side shown, right side is a mirror image
 Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
|
- -Coarse Seam Sealant
- For coarse seam sealing, the projection must be a total 8 mm and a height of 2 mm must be ensured.
- 1 -Outer Side Panel
- 2 -Inner Sill Panel
- 3 -Sill Panel Reinforcement
