Rear Underbody Protection

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

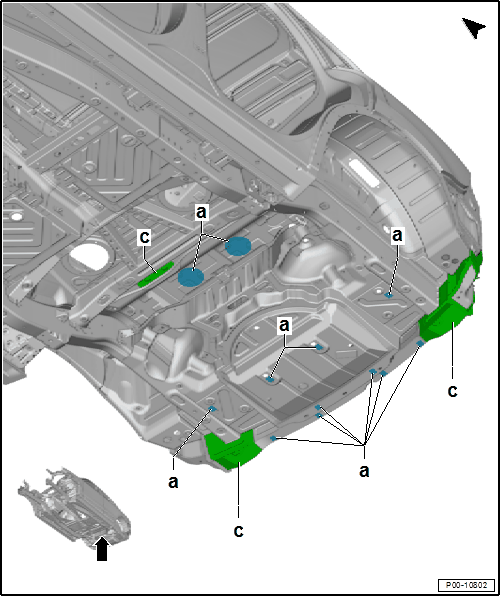

GWWP00-10802Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. a -Underbody Protection
    • Layer thickness 0.3 mm
  2. c -Underbody Protection
    • Layer thickness 0.6 mm
