Body Overview
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

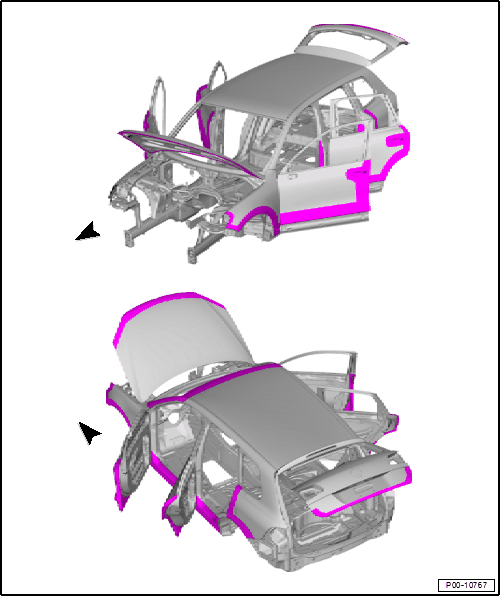

The marked areas are stone impact vulnerable areas.
When sanding these areas pay attention to the paint area thickness to avoid sanding through. The corrosion protection can only be ensured this way.
-- It is recommended, to sand the marked areas by hand, to avoid "sanding through" the KTL primer.
