Left Rear Side Panel Cover Points

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

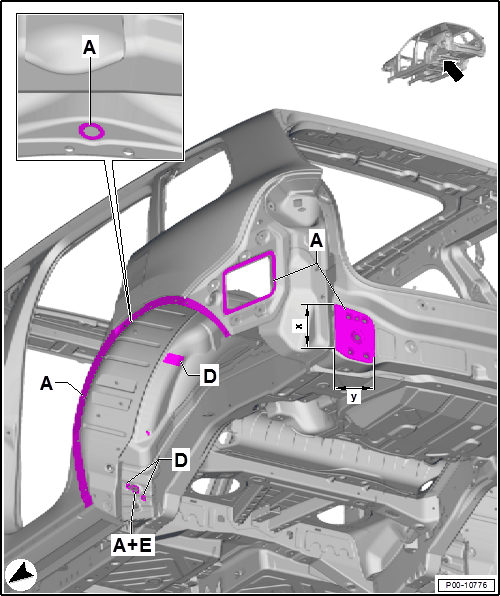

Left Side Shown, Right Side Is A Mirror Image

GWWP00-10776Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. A -  Contact Surfaces Free of Wax Drops and Sealant
  2. D -  Contact Surface Free of Underbody Protection
  3. E -  Contact Surfaces Free of PVC-Accumulation
  4. - Dimension -x-
    • 175 mm
  5. - Dimension -y-
    • 115 mm
