Engine Compartment Cover Points On The Right Side

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

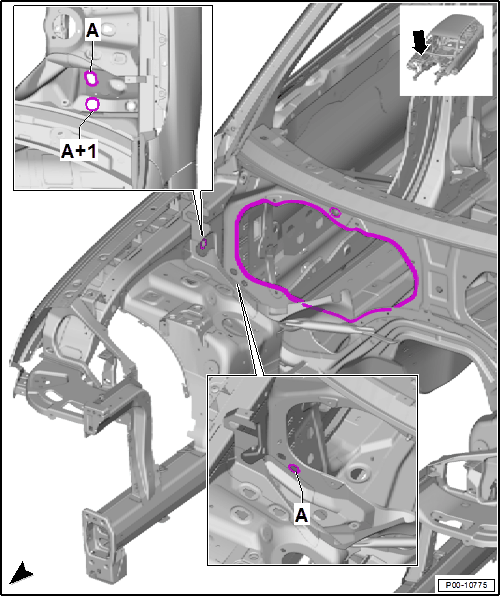

GWWP00-10775Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. A -  Contact Surfaces Free of Wax Drops and Sealant
  2. C -  Contact Surface Free of Wax and Sealant
  3. F -  Cut Edge on the Bulkhead Wax Free All Around
  4. 1 -  Cover Points Both Sides All Around 10 mm
