Auxiliary Hydraulic Pump Control Module -J922-, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Turn off the ignition and all electrical consumers and remove the ignition key.

-- Remove the right front wheel housing liner. Refer to WHEEL HOUSING LINER .

-- Open the cap -1-, pull the black primary locking mechanism on the bracket and then fold open the bracket.

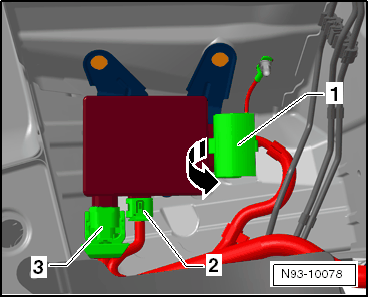

Fig 1: Open The Cap -1, Disconnect Both Connectors -2- And -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

The connector automatically ejects with the bracket if folded open and the connector is disconnected.

-- Disconnect both connectors -2 and 3-.

-- Remove both bolts -arrows- and remove the Auxiliary Hydraulic Pump Control Module -J922- -1- together with the bracket from the wheel housing.

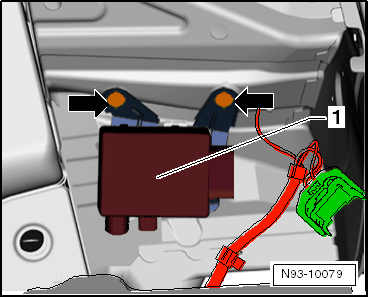

Fig 2: Identifying Both Bolts -Arrows-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
