Battery Regulation Control Module -J840-, Removing And Installing: Notes

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

The Battery Regulation Control Module -J840- is installed into the Connection and Junction Box 1 -SX1- (E-box), on the side of the Hybrid Battery Unit -AX1-.

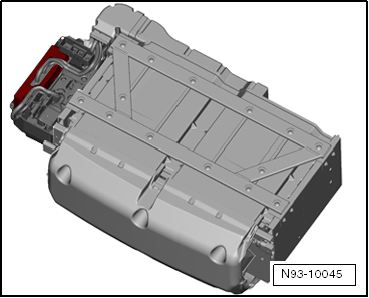

Fig 1: Battery Regulation Control Module -J840-
GWWN93-10045Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
