Battery Regulation Control Module -J840-, Removing And Installing: Installing

-- Connect the connector -6- and install the wiring harness.

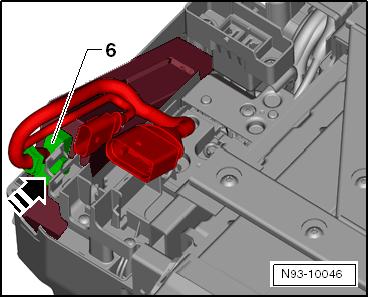

Fig 1: Connect The Connector -6- And Install The Wiring Harness.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Insert the Battery Regulation Control Module -J840- into the E-box and install both connectors -4 and 5- until they can be felt engage.

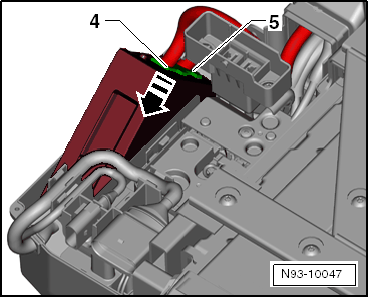

Fig 2: Connect Both Connectors -4- And -5-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Position the Battery Regulation Control Module -J840- in the E-box.

-- Fasten the ground cable (cable shoe) to the Battery Regulation Control Module -J840- in the E-box.

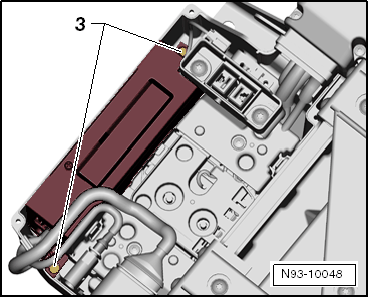

Fig 3: Secure The Battery Regulation Control Module And The Ground Cable With Both Bolts -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Secure the Battery Regulation Control Module -J840- and the ground cable with both bolts -3-.

-- Tighten both bolts -2- on the service plug mount.

Fig 4: Identifying Plug Mount Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Insert the connectors -1, 2 and 3-, -2- in the Battery Regulation Control Module -J840- until they can be felt engage.

Fig 5: 3 Connectors -1-, -2- And -3

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Secure the wire with a new cable tie -arrow-.

-- Check the wiring routing for the E-box wiring harness before installing the cover.

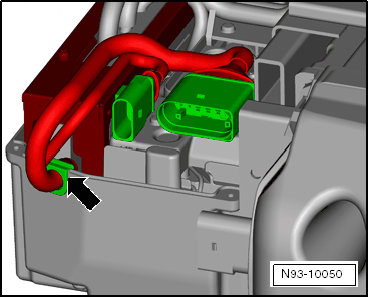

Fig 6: Identifying Rubber Grommet For Wiring Harness -Arrow- Is Installed Correctly In E-Box Housing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Position the E-box cover and fasten it with the eight bolts -1-.

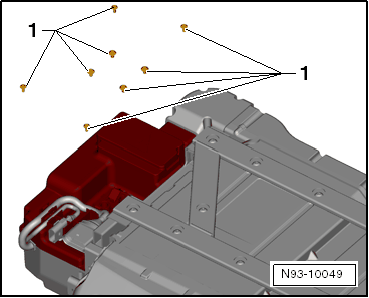

Fig 7: Identifying E-Box Cover And Tightening 8 Bolts -1-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the Hybrid Battery Unit -AX1-. Refer to HYBRID BATTERY UNIT -AX1-, REMOVING AND INSTALLING .

-- Restart the high voltage system and complete the required documentation. Refer to RESTARTING THE HIGH VOLTAGE ELECTRICAL SYSTEM .
