Battery Fans --, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Hybrid vehicle high voltage in the high voltage system. Danger of electrocution! The following procedure requires working on the high voltage system. Disable the high voltage system now. Refer to DISABLING THE HIGH VOLTAGE SYSTEM .

-- Disable the high voltage system. Refer to HIGH VOLTAGE SYSTEM GENERAL WARNINGS .

-- Remove the Hybrid Battery Unit -AX1-. Refer to HYBRID BATTERY UNIT -AX1-, REMOVING AND INSTALLING .

-- Remove the six bolts -1- and remove the ventilation guide.

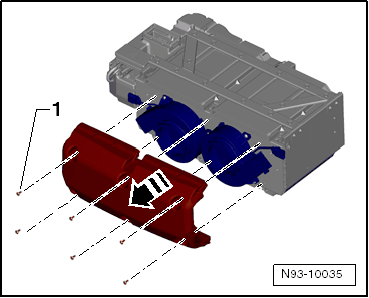

Fig 1: Identifying 6 Bolts -1- To Remove Ventilation Guide

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Unclip the connector on the fan being removed from its retainer on the Hybrid Battery Unit -AX1-.

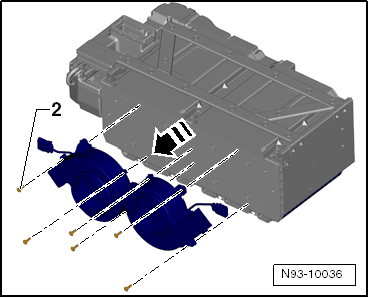

Fig 2: Identifying 3 Bolts -2- To Remove Fan From Hybrid Battery Unit

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the three bolts -2- of the respective fan and then remove the fan from the Hybrid Battery Unit -AX1-.
