Battery Fans --, Removing And Installing: Installing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Use locking fluid when installing the fan and the ventilation guide bolts.

Use new bolts when installing.

-- Position the respective fan on the Hybrid Battery Unit -AX1- and fasten the three bolts -2-.

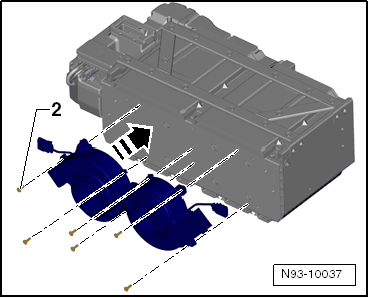

Fig 1: Align The Fan On The Hybrid Battery Unit And Tighten The 3 Bolts -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Tighten the fan bolts on the Hybrid Battery Unit -AX1- to 10 Nm.

-- Engage the fan connectors in the retainer on the Hybrid Battery Unit -AX1-.

-- Position the ventilation guide on the Hybrid Battery Unit -AX1- and fasten it with the six bolts -1-.

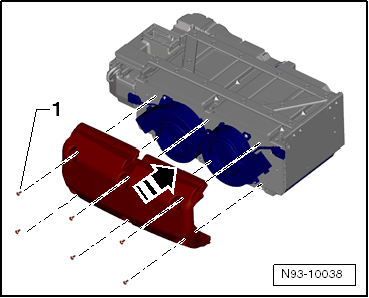

Fig 2: Position The Ventilation Guide On The Hybrid Battery Unit -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Tighten the ventilation guide bolts on the Hybrid Battery Unit -AX1- to 10 Nm.

-- Install the Hybrid Battery Unit -AX1-. Refer to HYBRID BATTERY UNIT -AX1-, REMOVING AND INSTALLING .

-- Restart the high voltage system and complete the required documentation. Refer to RESTARTING THE HIGH VOLTAGE ELECTRICAL SYSTEM .
