Electric Drive Power And Control Electronics -JX1-, Protecting

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

If the Electric Drive Power and Control Electronics -JX1- is being replaced, then it is necessary to protect the new electric drive power and control electronics on the flange plates with Wax Spray:D 322 000 A2 .

-- Tape off the Electric Drive Power and Control Electronics -JX1- in area 1.

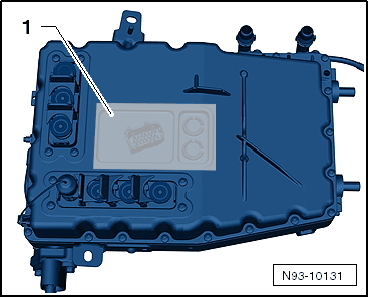

Fig 1: Tape Off The Electric Drive Power And Control Electronics In Area 1.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

Make sure the plastic caps -B- and the pilot line connector -C- are attached before spraying.

-- Lightly spray the areas -A- with Wax Spray:D 322 000 A2 and then let it dry for 30 minutes.

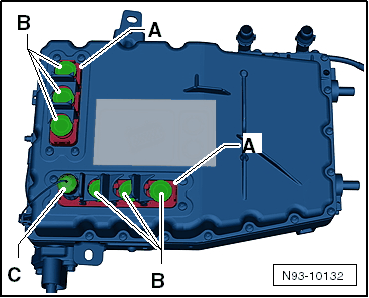

Fig 2: Identifying Plastic Caps -B-, Pilot Line Connector -C And Areas -A- To Spray With Wax D 322 000 A2

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
